技术细节
内容

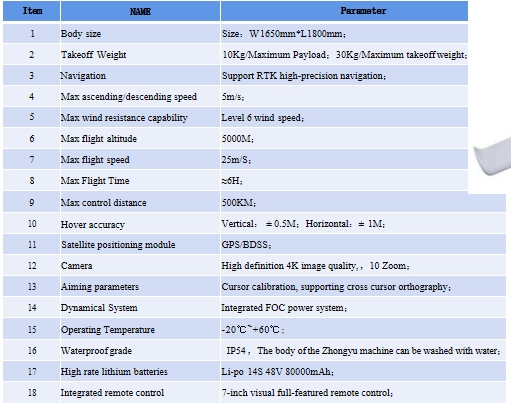

| Item | NAME | Parameter |
|---|---|---|
| 1 | Body size | Size: W1650mm*L1800mm; |
| 2 | Takeoff Weight | 10Kg Maximum Payload; 30Kg Maximum takeoff weight; |
| 3 | Navigation | Support RTK high-precision navigation; |
| 4 | Max ascending descending speed | 5m/s; |
| 5 | Max wind resistance capability | Level 6 wind speed; |
| 6 | Max flight altitude | 5000M; |
| 7 | Max flight speed | 25m/s; |
| 8 | Max Flight Time | ≈6H; |
| 9 | Max control distance | 500KM; |
| 10 | Hover accuracy | Vertical: ± 0.5M; Horizontal: ± 1M; |
| 11 | Satellite positioning module | GPS BDSS; |
| 12 | Camera | High definition 4K image quality, 10 Zoom; |
| 13 | Aiming parameters | Cursor calibration, supporting cross cursor orthography; |
| 14 | Dynamical System | Integrated FOC power system; |
| 15 | Operating Temperature | -20°C~+60°C; |
| 16 | Waterproof grade | IP54, The body of the Zhongyu machine can be washed with water; |
| 17 | High rate lithium batteries | Li-po 14S 48V 80000mAh; |
| 18 | Integrated remote control | 7-inch visual full-featured remote control; |
