Technical Details
Content

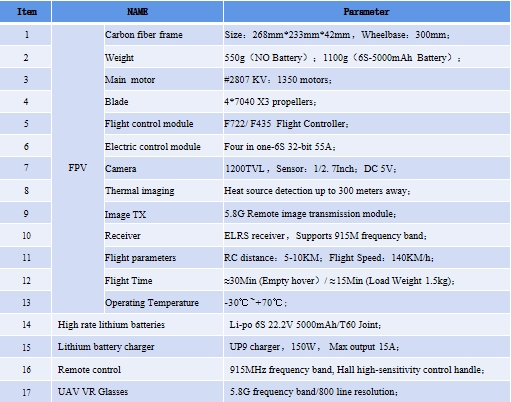

| Item | NAME | Parameter |
|---|---|---|
| 1 | Carbon fiber frame | Size: 268mm233mm42mm, Wheelbase: 300mm |
| 2 | Weight | 550g (NO Battery) ; 1100g (6S-5000mAh Battery) |
| 3 | Main motor | #2807 KV; 1350 motors |
| 4 | Blade | 4*7040 33 propellers |
| 5 | Flight control module | F722 F43S Flight Controller |
| 6 | Electric control module | Four in one-6S 32-bit 55A. |
| 7 | FPV Camera | 1200TVL, Sensor: 1/2.7-inch, DC 5V; |
| 8 | Thermal imaging | Heat source detection up to 300 meters away; |
| 9 | Image TX | 5.8G Remote image transmission module; |
| 10 | Receiver | ELRS receiver, Supports 915M frequency band; |
| 11 | Flight parameters | RC distance: 5-10KM; Flight Speed: 140KM/h; |
| 12 | Flight Time | ≈30Min (Empty hover) / ≈15Min (Load Weight 1.5Kg); |
| 13 | Operating Temperature | -30°C ~ +70°C |
| 14 | High rate lithium batteries | Li-po 6S 22.2V 5000mAh T60 Joint; |
| 15 | Lithium battery charger | UP9 charger, 150W, Max output 15A; |
| 16 | Remote control | 915MHz frequency band, Hall high-sensitivity control handle; |
| 17 | UAV VR Glasses | 5.8G frequency band 800 line resolution; |
