技术细节
内容

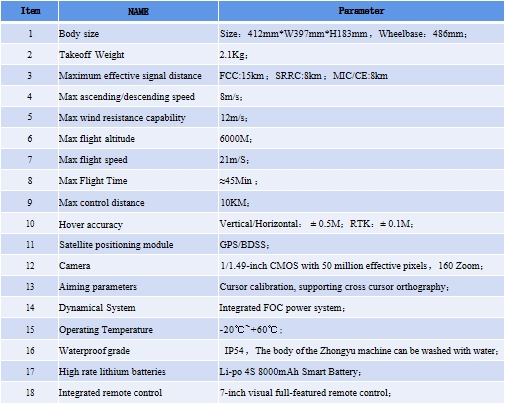

| Item | NAME | Parameter |
|---|---|---|
| 1 | Body size | Size: 412mmW397mmH183mm; Wheelbase: 486mm |
| 2 | Takeoff Weight | 2.1Kg |
| 3 | Maximum effective signal distance | FCC:15km; SRRC:8km; MIC/CE:8km |
| 4 | Max ascending descending speed | 8m/s |
| 5 | Max wind resistance capability | 12m/s |
| 6 | Max flight altitude | 6000M |
| 7 | Max flight speed | 21m/s |
| 8 | Max Flight Time | >45Min |
| 9 | Max control distance | 10KM |
| 10 | Hover accuracy | Vertical/Horizontal: ± 0.5M, RTK: ± 0.1M |
| 11 | Satellite positioning module | GPS BDSS |
| 12 | Camera | 1/1.49-inch CMOS with 50 million effective pixels, 160 Zoom |
| 13 | Aiming parameters | Cursor calibration, supporting cross cursor orthography; |
| 14 | Dynamical System | Integrated FOC power system; |
| 15 | Operating Temperature | -20°C~60°C |
| 16 | Waterproof grade | IP54, The body of the Zhongyu machine can be washed with water; |
| 17 | High rate lithium batteries | Li-Po 4S 8000mAh Smart Battery; |
| 18 | Integrated remote control | 7-inch visual full-featured remote control; |
